Swiftpro L10 Simplex Laminator

Security
  • Hologram, tamper resistance and difficult to counterfeit
  • Plain, generic or custom hologram options available
Durability
  • Dual InTM film protection
  • Overlay and laminate for enhanced security
  • Bend remedy function
  • Up to 5-year durability
Versatility

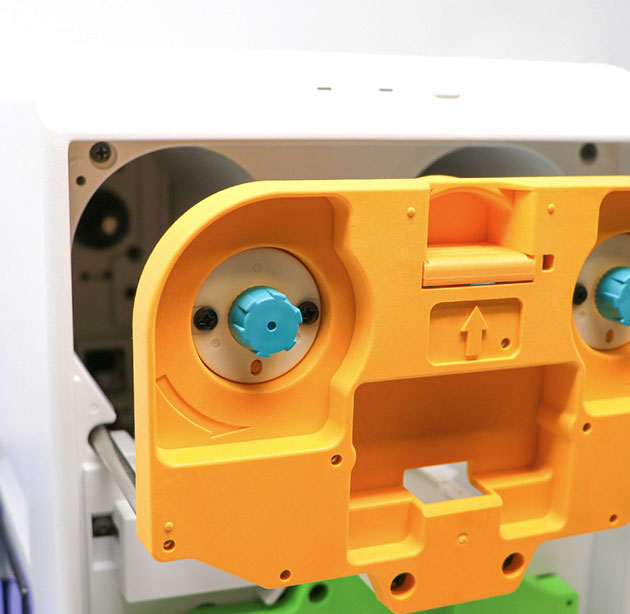

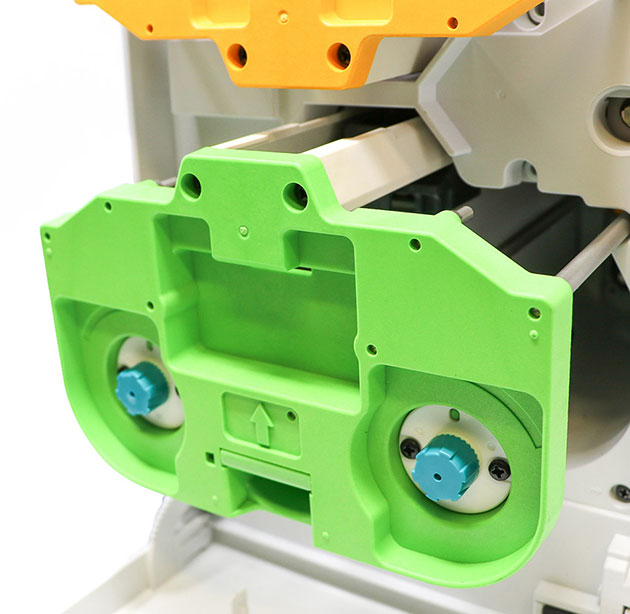

  • Color coded supply cartridges and intuitive supply loading for easy loading of lamination supplies
Compatible With
  • Swiftpro K30, K30D and K60 card printers

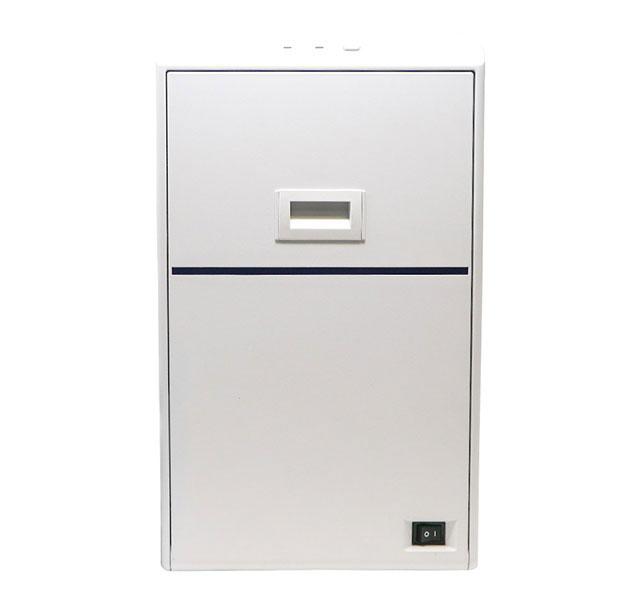

Swiftpro L10 Single-Sided

Simplex Laminator

Partner a Swiftpro ID card printer with the L10 lamination module to achieve maximum durability and security.

The Swiftpro L10 single-sided lamination unit is the ideal partner for the K-Series of Swiftpro printers, providing enhanced durability and longer card lifecycle. Using a thermal transfer lamination application, the Swiftpro L10 laminator offers clear, generic or custom hologram overlay options for increased security, ensuring that cards are tamper resistant and very difficult to counterfeit.

The color-coded supply cartridges and intuitive supply loading enables the simple loading of lamination supplies, enhancing the ease of use for businesses printing a wide range of cards. The Swiftpro L10 laminator increases the durability, life cycle and security of passes, badges and cards.

Technical Specification

Laminate Method

Thermal transfer

Lamination Overview

Single sided lamination
Overlays
Clear 0.6mil and 1.0mil laminates
Generic 0.6mil and 1.0mil laminates
Custom hologram 0.6mil and 1.0mil laminates

Interface

Infrared communication

Card Size & Type Support

Material PVC, PC, PET, PETG
Cards thickness 0.25mm ~ 1.00mm Size: 54.0mm * 85.6mm

Dimensions, Weight, & Operating Environment

Dimensions W210mm×D330mm×H360mm
Mass approx. Single Side 8,5kg Dual Side 9.5kg
Temperature Temp +15°C~28°C Humidity 35%RH~60RH (No condensation)

Safety Standards

UL,CE,FCC,KC,CSA

Software Development Kit

K-Series optional SDK (Contact your local sales office)

Warranties

36 months Laminator

Included in the Printer

Power cord with power supply
USB / Ethernet cable
Cleaning card
Printer driver CD

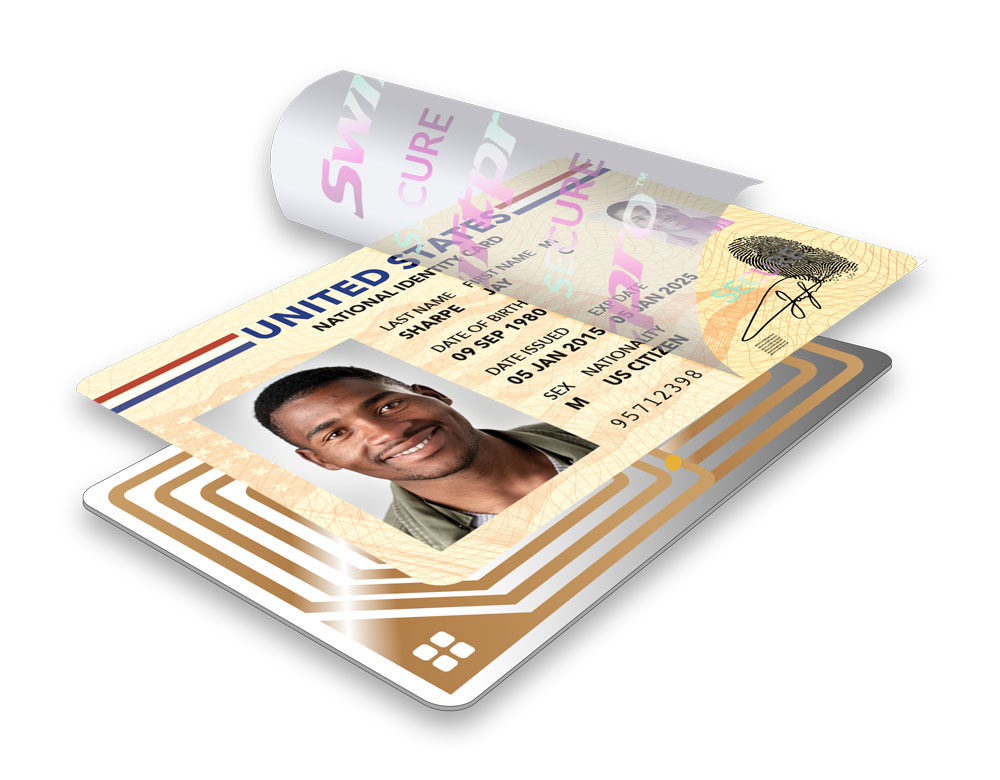

Explore the Layers of Security

Layer-of-security-2

Variable UV Image

Watermark

Micro Printing

Proximity Antenna & MIFARE® Antenna

2 YEARS DURABILITY

• UV printing (256 Gradations)
• Higher durability with dual inTM film protection

5 YEARS DURABILITY

• L10 Lamination module
• Single sided lamination
• 0.6mil Laminates
• 1.0mil Laminates

10 YEARS DURABILITY

• L10D Lamination module
• Dual sided lamination in one pass
• 0.6mil Laminates
• 1.0mil Laminates

ELEVATED SECURITY PROGRAMS

• L10 or L10D Lamination module
• Holographic custom overlay
• 0.6mil Laminates
• 1.0mil Laminates
• Range of optical variable devices
• Laser retrievable images
• Registered images
