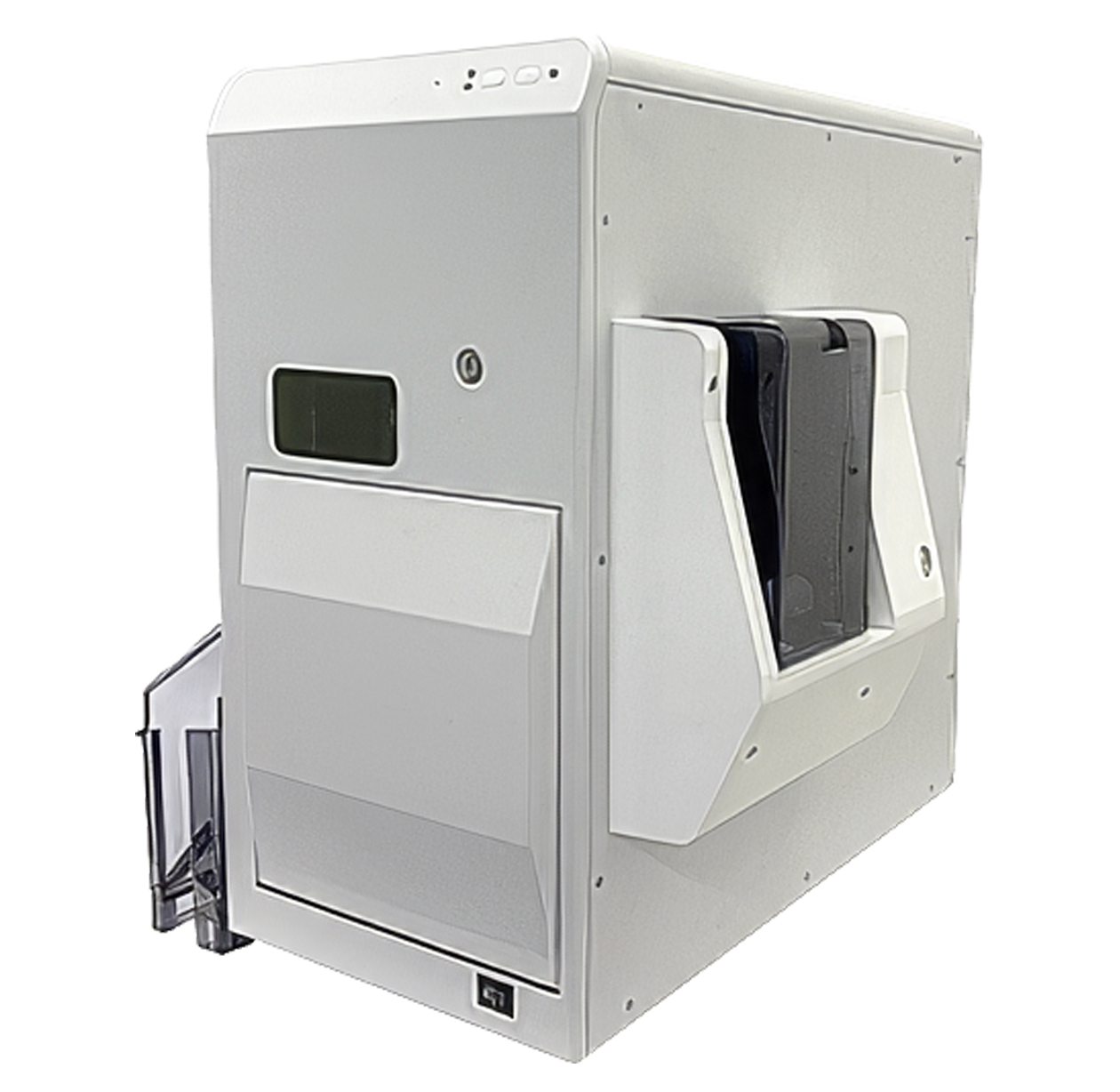

SwiftLaser™ PRO

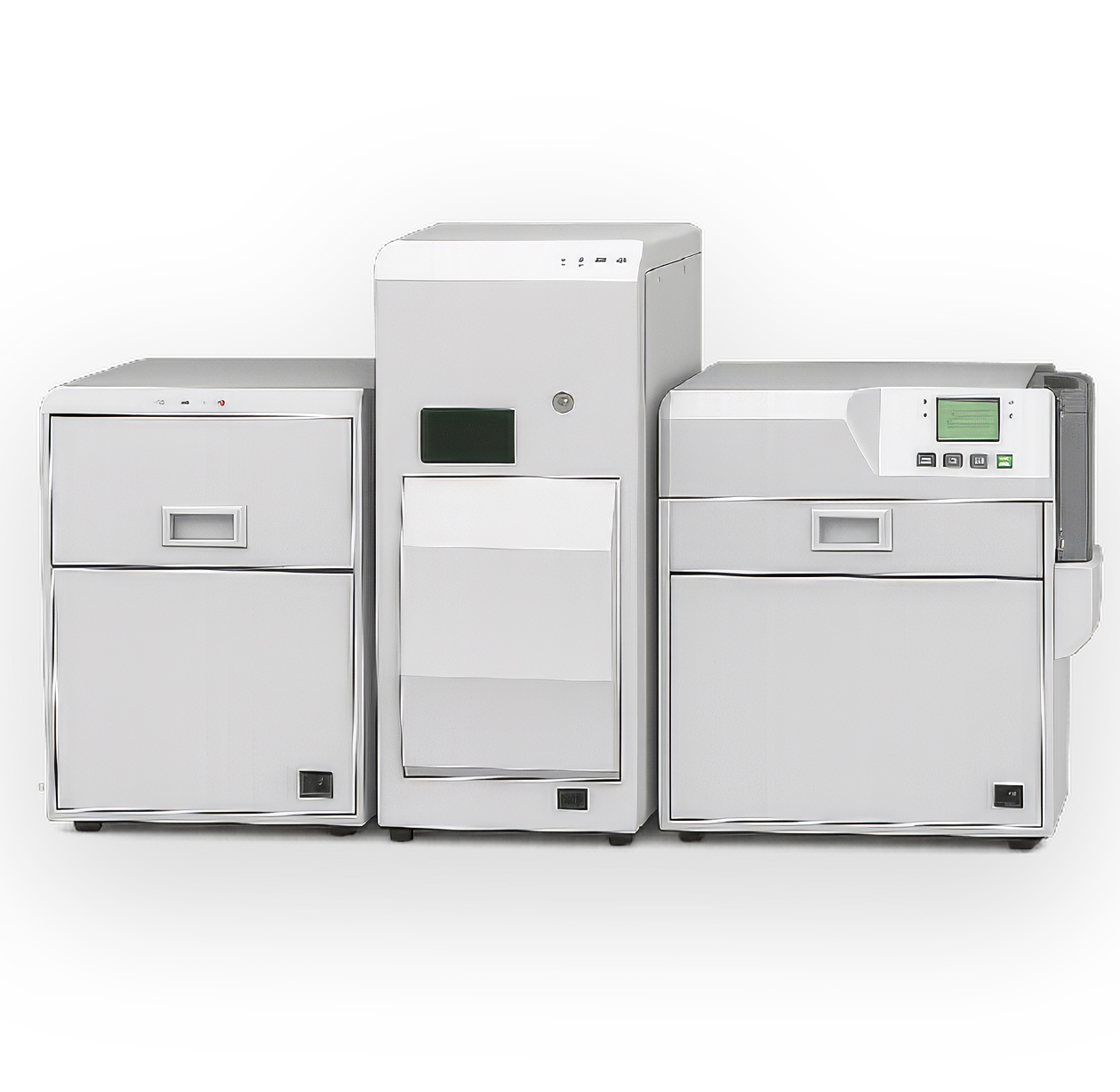

The SwiftLaser™ PRO is available as a stand-alone desktop engraver or factory integrated with the Swiftpro® K65 retransfer printer to add high-quality 600dpi color images, intricate security patterns, UV images and microtext. Add the Swiftpro® L10 or L10D laminator to complete the system for highly durable laminated, tamper-evident security.

  • swiftlaser pro laser engraving system
  • swiftlaser pro modular desktop laser engraving system
  • swiftlaser pro laser engraving system
  • swiftlaser pro modular desktop laser engraving system

Explore

SwiftLaser™ PRO

Security
  • State-of-the-art standalone desktop laser engraver or modular system
  • Input hopper and laser module benefit from a secure lock and key mechanism
  • Polycarbonate substrate is permanently changed when personalized, making documents extremely difficult to forge
  • MLI (Multiple Laser Image) security engraving - standard
Print Capabilities
  • Vector and raster graphics
  • Flipping mechanism for front and back side engraving
  • Automatic 100 card input card feeder
  • Micro text, guilloche, barcode, QR code, tactile and embossed effects for customization
Durability
  • Low maintenance 20W MOPA fiber laser engine
  • 10-year life for polycarbonate ID cards
  • Laser light is the ultimate choice for high UV stability, preventing fading
Image Quality
  • High-quality laser engraving delivering up to 1200 DPI resolution
  • High-definition 256 grayscale picture engraving
  • When combined with the Swiftpro® K65 printer and L10/L10D laminator for a full modular solution
Warranties
  • 12 month warranty for the SwiftLaser™ PRO
  • 36 month warranty for the Swiftpro® K65 printer and L10/L10D laminator

SwiftLaser™ PRO

Modular Desktop Laser Engraving System

Purposely built for secure ID card programs, the SwiftLaser™ PRO can be deployed as a stand-alone desktop laser engraver or integrated into a complete card personalization system when paired with the Swiftpro® K65 retransfer card printer and the Swiftpro® L10 or L10D laminator.

Powered by a 20W MOPA fiber laser engine, the SwiftLaser™ PRO delivers permanent, high-definition engraving up to 1200 DPI with high-resolution 256 grayscale picture engraving – the image quality and security demanded by national IDs, driver’s licenses and other government-issued credentials.

With Multiple Laser Image (MLI) as a standard feature and Changeable Laser Image (CLI) available as an option, the SwiftLaser™ PRO permanently alters the card surface during personalization, making credentials extremely difficult to modify, forge or counterfeit.

Whether operating on its own or as part of the full modular lineup, the SwiftLaser™ PRO gives card program managers the flexibility to start small and scale into a complete issuance system as demand grows.

Technical Specification

Standard Features

20W MOPA fiber laser engine
Standard MLI (Multiple Laser Image) security engraving
Laser working field: ICAO 9303-TD1
Up to 1200 DPI resolution
Up to 120 cards per hour single-sided
Up To 60 cards per hour dual-sided
High resolution 256 greyscale picture engraving
XY offset registration - via optional software
12-month warranty
Built in Computer with SCAPS SAMLight, Windows 11 Pro
SDK & web-based software tools
Color graphics display for status & monitoring
Active carbon filter
Card rejection function
Flip mechanism
RFID reader
USB 2.0 port

Laser Marking Variety

Sub-surface
Tactile
Microtext
Grayscale image
MLI
CLI (optional)

Electrical

200W, 190-240 VAC 50HZ AC/DC external power supply, included as standard

Operating Conditions

Temperature: 18°C to 30°C
Humidity: 10% to 85% (non-condensing)

Physical Specifications

Height 454mm
Width 200mm
Depth 360mm
Weight 18 kg

Options

Optional contact and contactless encoding
Optional input hopper
Optional 125 card output hopper
Professional services on request
Extended warranty
CLI (Changeable Laser Image) security engraving
Auto-positioning camera SDK
External exhaust filter
Installation and training

Card Specification

Card thickness 10-40mil (10% tolerance)
Card size ISO 7810 format, CR80, ID-1
Card material: PC, laser-ready PVC and metal cards (upon qualification)
Technology cards contact and/or contactless with and without magnetic stripe

Additional Information

SwiftLaser™ PRO is a Class 1 laser product
No cost for consumables, except for cards
Can be combined with the Swiftpro K65 printer and L10 or L10D laminator for full modular solution
